Flappy Ball Game

project: project.c
	gcc project.c gfx2.o -lX11 -lm -o project

clean:
	rm project

// Author: Ignacio Sadurni
// Date: 12.8.2023
// Lab 11 (Mini) Final Project
// This program is a simple game where the ball must fly between the green pipes for as long as you can, obtaining a higher score.

# include <stdio.h>
# include <stdbool.h>
# include <unistd.h>
# include <stdlib.h>
# include <stdio.h>
# include <math.h>
# include "gfx2.h"
# define width 800
# define height 600

typedef struct {
	int game_speed;
	int gravity;
	} Modes;

// FUNCTION PROTOTYPES /////////////////////////////////////////////////////////////////////////
void draw_pipe(int);
void draw_ball(int,int);
bool check_bounds(int,int,int);
void disp_menu(bool, int, int);
void disp_rules();

// MAIN DRIVER /////////////////////////////////////////////////////////////////////////////////

int main() {

	// declare variables
	Modes settings[2]; // use struct for difficulty settings
	settings[0].game_speed = 50000; // game speed for easy mode
	settings[1].game_speed = 25000; // game speed for hard mode
	settings[0].gravity = 10;
	settings[1].gravity = 20;
	bool first = true;
	int score = 0;
	int high_score = 0;
	int mode = 1;
	gfx_open(width, height, "Mini Project"); // open tab
	gfx_clear_color(102,204,255); // background color to blue

	while(1) { // Runs until user quits app by pressing q in the menu

		// declare variables that reset to original value:
		bool over = false; // flag for game while it is not over
		bool down = true; // flag to indicate direction of ball
		int x_pipe = width; // position of pipe (x)
		int x = 200; // position of ball (x)
		int y = height/4; // position of ball (y)
		int count = 0; // counter

		if(high_score < score) high_score = score; // updates high score
		disp_menu(first, high_score, mode); // call function to display menu

		char input = gfx_wait(); // get user input

		if(input == 'r') {
			disp_rules(); // if user presses r call function to display rules
			over = true;
		}
		else if(input == 'q') break; // quit app
		else if(input == 'd') { // change difficulty
			if(mode == 1) mode = 2;
			else if(mode == 2) mode = 1;
			over = true;
		}

		score = 0; // set score to 0

		while(!over) { // Loop runs the actual game
			if(mode == 1) usleep(settings[0].game_speed); // create delay for easy mode
			else if(mode == 2) usleep(settings[1].game_speed); // create delay for hard mode
			input = '0'; // reset user input
			gfx_clear(); // clear screen
			draw_ball(x,y); // call function to draw ball
			draw_pipe(x_pipe); // call function to draw pipe
			gfx_flush();

			if(gfx_event_waiting()) { // if user presses key in game
				input = gfx_wait();
			}

			if(abs(x-x_pipe) < 60) { // check if ball is within bounds of pipe
				over = check_bounds(x,y,x_pipe); // calls function to check height of ball
			}

			if(input == ' ') { // is user presses space key
				down = false; // set down to false, indicating that the ball must go up
			}

			x_pipe -= 20; // move pipe to the left
			score++; // increase score

			if(x_pipe <= 0) { // if pipe reaches the left of the screen
				x_pipe = width; // change pipe position to the right side of the screen
			}

			switch(down) {
				case true: // if ball is going down, increase y
					if(mode == 1) y+=settings[0].gravity; // easy mode gravity
					else y+=settings[1].gravity; // hard mode gravity
					break;
				case false: // if ball is going up, decrease y
					if(mode == 1) y-=settings[0].gravity;
					else y-=settings[1].gravity-5;
					count++; // update counter
				break;
			}

			if(count == 10) { // when counter is 10, change direction of ball to go down again
				down = true;
				count = 0;
			}
			first = false; // indicates it is not the first iteration
		}
	}
	return 0;
}

// FUNCTIONS ///////////////////////////////////////////////////////////////////////////////////

void draw_pipe(int x) { // This function draws both green pipes
	gfx_color(0,255,0);
	gfx_fill_rectangle(x, 0, 50, 200);
	gfx_fill_rectangle(x-20, 200, 90, 25);
	gfx_fill_rectangle(x, 400, 50, 475);
	gfx_fill_rectangle(x-20, 375, 90, 25);
	gfx_color(0,0,0);
	gfx_rectangle(x, 0, 50, 200);
	gfx_rectangle(x-20, 200, 90, 25);
	gfx_rectangle(x, 400, 50, 475);
	gfx_rectangle(x-20, 375, 90, 25);
}

void draw_ball(int x, int y) { // This function draws the yellow ball
	gfx_color(255,255,26);
	gfx_fill_circle(x,y,20);
	gfx_color(0,0,0);
	gfx_circle(x,y,20);
}

bool check_bounds(int x, int y, int x_pipe) { // This function check the bounds to see if the ball touched the pipe
	if(y-20<=225 || y+20>=375) return true;
}

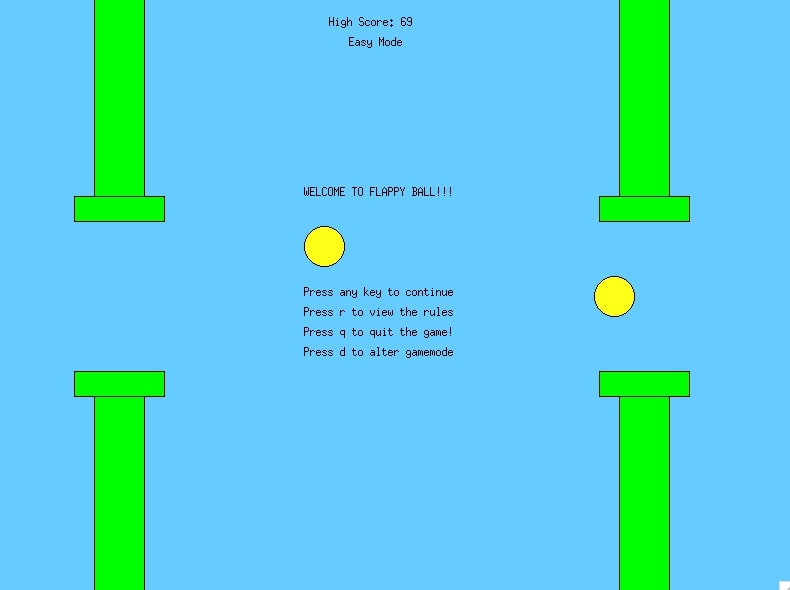

void disp_menu(bool first, int score, int mode) { // This function displays the menu
	gfx_clear();
	gfx_color(0,0,0);
	gfx_text(310,200,"WELCOME TO FLAPPY BALL!!!");
	gfx_text(310,300,"Press any key to continue");
	gfx_text(310,320,"Press r to view the rules");
	gfx_text(310,340,"Press q to quit the game!");
	gfx_text(310,360,"Press d to alter gamemode");
	draw_ball(330,250);
	draw_ball(620,300);
	draw_pipe(100);
	draw_pipe(625);
	if(first == false) { // After the first game the score is displayed in the menu
		char scoreChar[20];
		sprintf(scoreChar, "High Score: %d", score); // Converts score (int) to a string
		gfx_text(335,30,scoreChar); // displays high score
	}
	if(mode == 1) gfx_text(355,50,"Easy Mode"); // display difficulty / gamemode
	else if(mode == 2) gfx_text(355,50,"Hard Mode");
	gfx_flush();
}

void disp_rules() { // This function displays the rules
	gfx_clear();
	gfx_color(0,0,0);
	gfx_text(270,200,"The yellow ball will descend over time");
	gfx_text(270,250,"Press space to jump or 'flap'  upwards");
	gfx_text(270,300,"You cannot hit the moving green pipes!");
	gfx_text(270,400,"Helpful tip: do not spam the space key");
	gfx_text(270,450,"Press any key to continue, have fun!!!");
	draw_ball(90,300);
	draw_pipe(100);
	draw_pipe(625);
	gfx_wait();
}

// gfx2.h

#ifndef GFX2_H
#define GFX2_H

#include <X11/Xlib.h>
#include <X11/cursorfont.h>

// Open a new graphics window.
void gfx_open( int width, int height, const char *title );

// Flush all previous output to the window.
void gfx_flush();

// Change the current drawing color.
void gfx_color( int red, int green, int blue );

// Clear the graphics window to the background color.
void gfx_clear();

// Change the current background color.
void gfx_clear_color( int red, int green, int blue );

// Check to see if an event is waiting.
int gfx_event_waiting();

// Wait for the user to press a key or mouse button.
char gfx_wait();

// Return the X and Y coordinates of the last event.
int gfx_xpos();
int gfx_ypos();

// Return the X and Y dimensions of the screen (monitor).
int gfx_xsize();
int gfx_ysize();

// Draw a point at (x,y)
void gfx_point( int x, int y );

// Draw a line from (x1,y1) to (x2,y2)
void gfx_line( int x1, int y1, int x2, int y2 );

// Draw a circle centered at (xc,yc) with radius r
void gfx_circle( int xc, int yc, int r );

// Display a string at (x,y)
void gfx_text( int x, int y , const char *text );

// -----------------------------
// new functions added 10/4/23:
// -----------------------------

// Draw a filled circle centered at (xc,yc) with radius r
void gfx_fill_circle( int xc, int yc, int r );

// Draw an ellipse centered at (xc,yc) with radii r1 and r2
void gfx_ellipse( int xc, int yc, int r1, int r2 );

// Draw an arc whose top left corner of its bounding rectangle is at (x,y),
//  with width w and height h, starting at angle a1 and sweeping an angle of a2 (degrees);
//  a1 of 0 is at the 3 O'Clock position, and the a2 sweep is positive counter-clockwise
void gfx_arc( int x, int y, int w, int h, int a1, int a2 );

// Draw a filled arc (similar description to gfx_arc)
void gfx_fill_arc( int x, int y, int w, int h, int a1, int a2 );

// Draw a rectangle with top-left corner at (x,y) with width w and height h
void gfx_rectangle( int x, int y, int w, int h );

// Draw a filled rectangle (similar description to gfx_rectangle)
void gfx_fill_rectangle( int x, int y, int w, int h );

// Draw a polygon whose "num_pts" number of corners are in the "pointsarr" array
//  (note: uses Xlib's XPoint struct)
void gfx_polygon( XPoint *pointsarr, int num_pts );

// Draw a filled polygon (similar description to gfx_polygon)
void gfx_fill_polygon( XPoint *pointsarr, int num_pts );

// Change the font that gfx_text will use
//   (see the file /usr/share/X11/fonts/misc/fonts.alias for possible fonts)
void gfx_changefont( char * );

// change the cursor (mouse pointer)
//   (see the file /usr/include/X11/cursorfont.h for possible cursors)
void gfx_changecursor( int );

#endif
